To design a cabling solution for the two most common digital interfaces, let's begin by clearly defining their features. (USB will be detailed on another page)
AES/EBU (Audio Engineering Society) and S/PDIF (Sony/Philips Digital Interface) are two distinct digital audio transport protocols. AES-3 includes a Cyclic Redundancy Check (CRC) that can detect and correct a single-bit error within transmitted packets. The physical and electrical characteristics differ between the two: S/PDIF uses RCA connectors or TOSLINK optical interfaces, designed for consumer applications, and includes copy protection flags.
In contrast, AES/EBU employs XLR connectors, which are fully balanced and ideal for professional audio environments. Additionally, AES/EBU offers advanced features such as channel labeling and time code, whereas S/PDIF primarily provides basic digital audio transfer with copy protection. It is also important to note that S/PDIF has a limited maximum cable length, while AES/EBU supports very long cable runs due to its balanced design and higher maximum voltage swing.
Lifestyle cabling and power products
Fundamental Building blocks
High Performance
Reference Level
Boundless possibilities & Tech
Reference grounding system for analog and Digital components
Reference power delivery system with 6 ports of exceptionally quiet system grounds
State of the art Current and Voltage delivery with industry leading technology for stable reference system and chassis grounds
Capacitance, inductance, and impedance are key electrical properties that significantly impact the performance of cables used for digital audio transmission. Here’s a condensed list of how each of these factors affects digital cables:
1. Capacitance - Effects Signal Quality
2. Inductance - Effects on Signal Transmission along the cable
3. Impedance - Impacts Transmission physical properties
We have precisely identified the symptoms and locations of issues that EnKlein engineered cables expertly resolve and balance. Our cutting-edge use of multilayer dielectric conductors, combined with proprietary conductive anodes, directly rectifies overlooked and traditional problems. By harnessing exothermic reactions to bond conductors to connectors, we ensure that the parallel network operates at its highest efficiency, providing users with a seamless and immersive digital experience that surpasses expectations.
In summary, capacitance, inductance, and impedance are interconnected electrical properties that collectively influence the performance of digital cables:

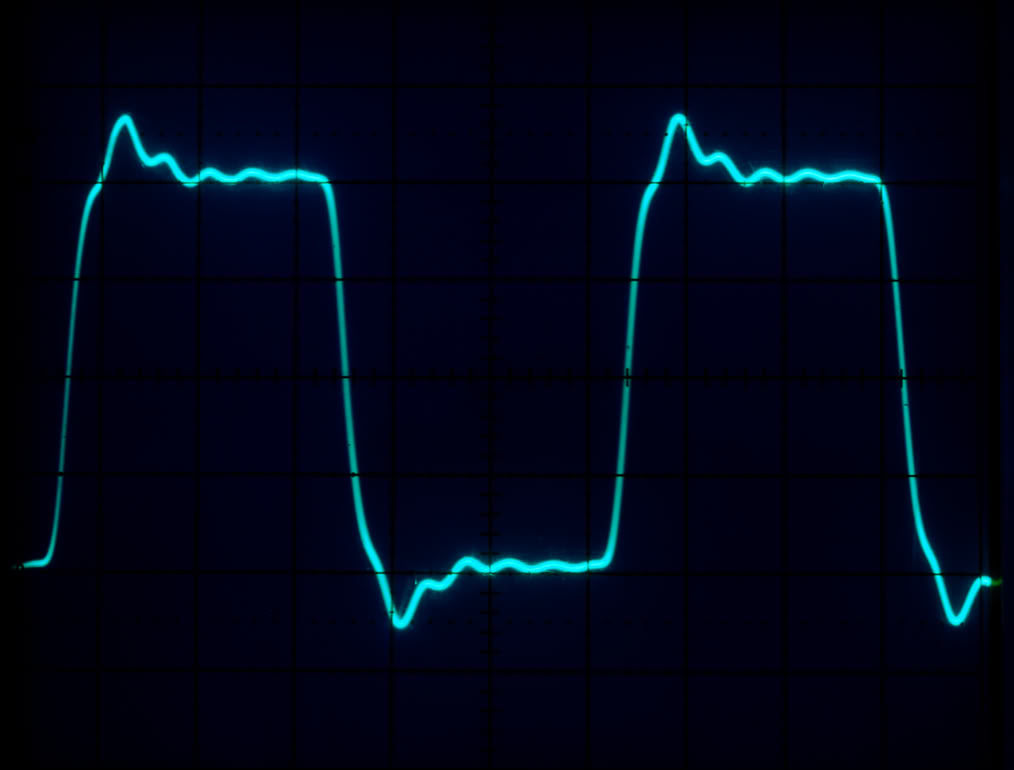

- Capacitance impacts signal quality by potentially causing degradation, jitter, and bandwidth limitations, particularly over extended distances.
- Inductance influences the speed of signal transitions and affects overall impedance, which is vital for minimizing reflections and preserving signal integrity.
- Impedance characteristics across frequencies are critical in engineering, as they must be harmonized to facilitate a lossless system. Poor cable performance can lead to signal loss, standing waves, and reflections that compromise audio quality.
When selecting digital cables, it is essential to consider these factors to ensure optimal system performance and maintain the integrity and fidelity of the audio signal. High-quality EnKlein cables are engineered with low capacitance and inductance, in conjunction with impedance, to eliminate transmission issues between your media source and DAC, supporting reliable, high-fidelity audio recording and playback.
